Functional	Product Model	Docs

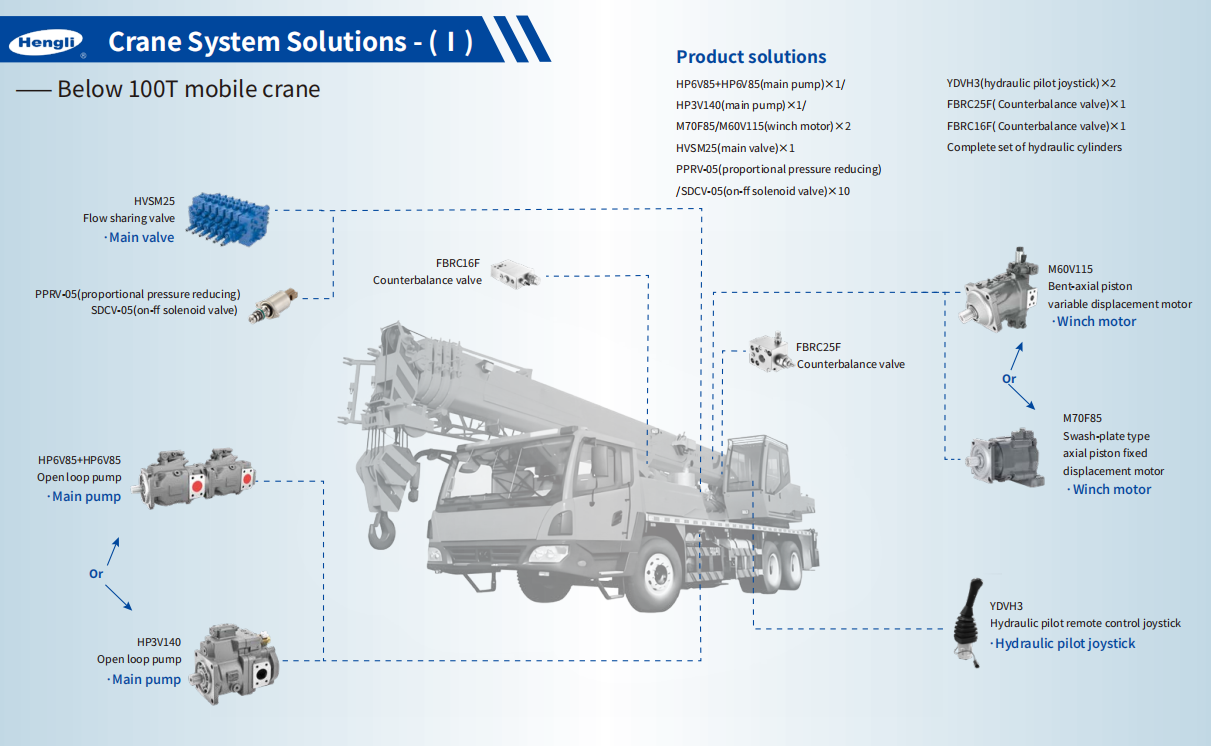

Main Pump	HP6V85，HP3V140	HP6V , HP3V
Winch Motor	M70F85，M60V115	M70F(E) ,M60V(E)
Main Valve	HVSM25	HVSM25(WL)
Main Valve Pilot	PPRV-05, SDCV-05	PPRV-05 ，SDCV-05
Hydraulic Pilot Joystick	YDVH3	YDVH3
Balancing Valve	FBRC25F，FBRC16F	FBRC
Hydraulic Cylinder	Complete Set of Hydraulic Cylinders

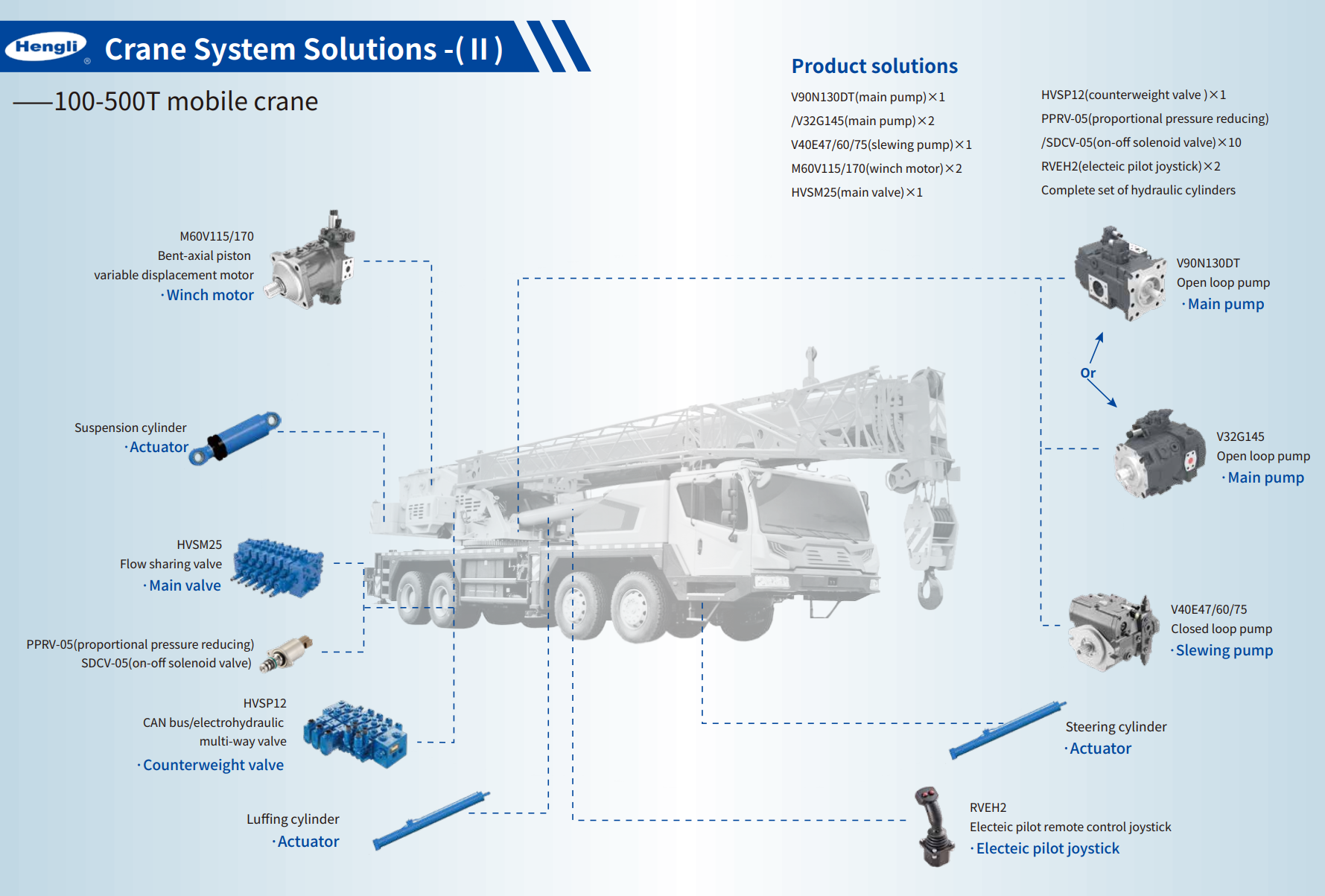

Functional	Product Model	Docs
Main Pump	V90N130-T，V32G145	V90N-T  , V32G
Slewing Pump	V40E47/60/75	V40E
Winch Motor	M60V115/170	M60V(E)
Main Valve	HVSM25	HVSM25(WL)
Main Valve Pilot	PPRV-05, SDCV-05	PPRV-05 ，SDCV-05
Counterweight valve	HVSP12	HVSP
Electric control handle	RVEH2	RVEH
Hydraulic Cylinder	Complete Set of Hydraulic Cylinder

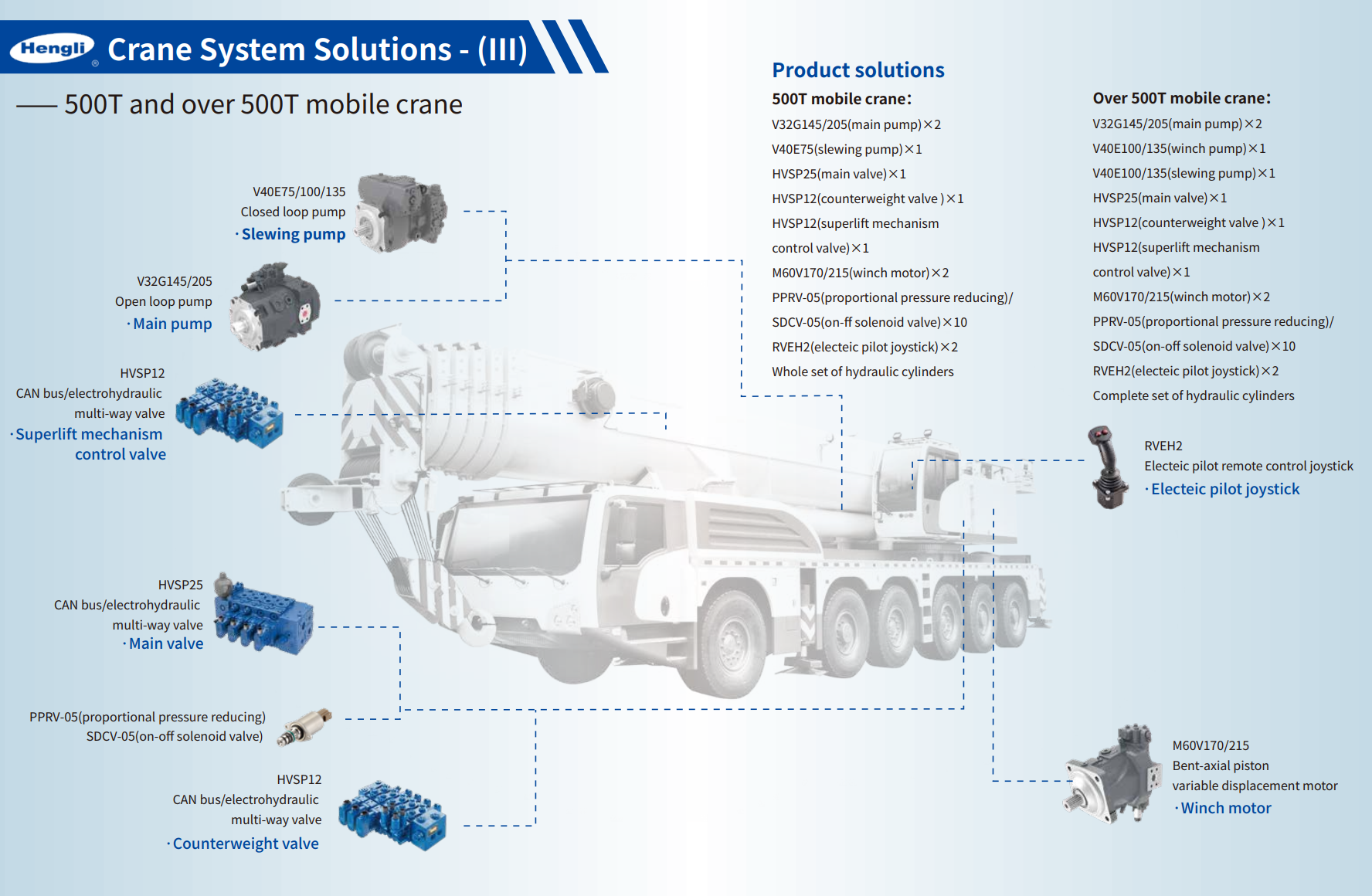

500T Mobile Crane：

Functional	Product Model	Docs
Main Pump	V32G145/205	V32G
Slewing Pump	V40E75	V40E
Winch Motor	M60V170/215	M60V(E)
Main Valve	HVSP25	HVSP
Main Valve Pilot	PPRV-05, SDCV-05	PPRV-05 ，SDCV-05
Counterweight valve	HVSP12	HVSP
Superlift Mechanism Control Valve	HVSP12	HVSP
Electeic Pilot Joystick	RVEH2	RVEH
Hydraulic Cylinder	Complete Set of Hydraulic Cylinder

Greater Than 500T Mobile Crane：

Functional	Product Model	Docs
Main Pump	V32G145/205	V32G
Slewing Pump	V40E100/135	V40E
Winch Pump	V40E100/135	V40E
Winch Motor	M60V170/215	M60V(E)
Main Valve	HVSP25	HVSP
Main Valve Pilot	PPRV-05, SDCV-05	PPRV-05 ，SDCV-05
Counterweight valve	HVSP12	HVSP
Superlift Mechanism Control Valve	HVSP12	HVSP
Electeic Pilot Joystick	RVEH2	RVEH
Hydraulic Cylinder	Complete Set of Hydraulic Cylinder

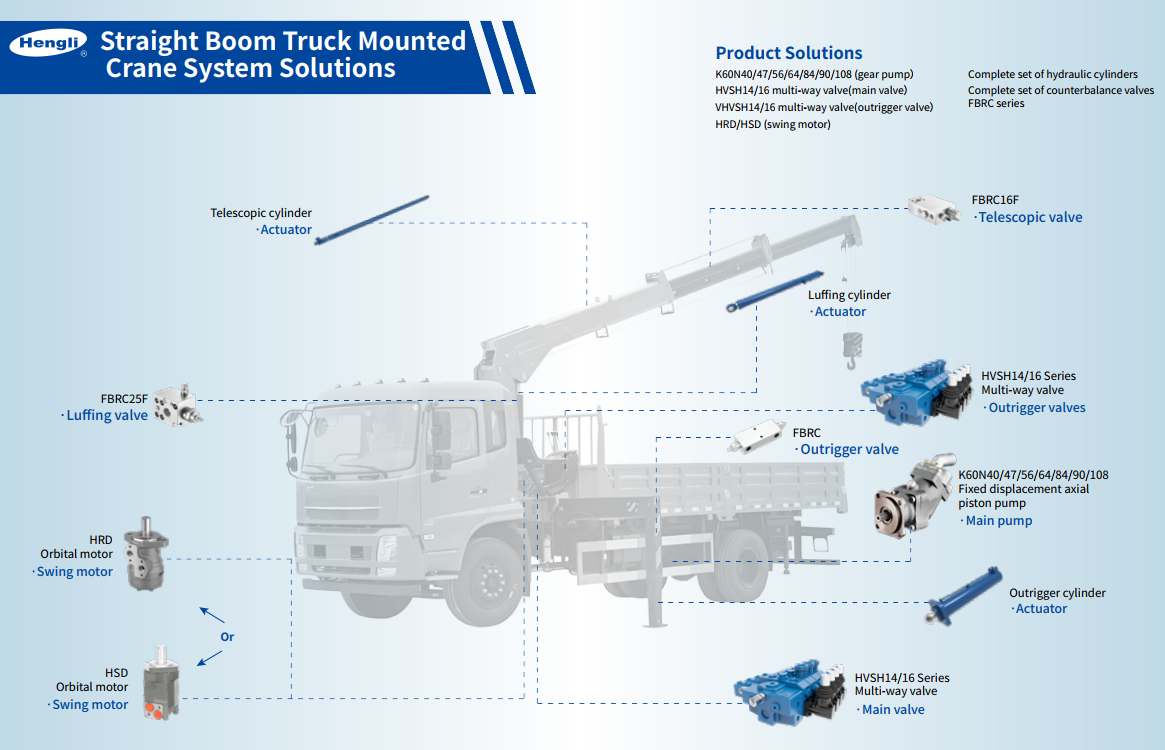

Functional	Product Model	Docs
Gear pump	K60N40/47/56/64/84/90/108
Main valve	HVSH14/16	HVSH
Outrigger valve	HVSH14/16	HVSH
Swing motor	HRD , HSD	HRD , HSD
Counterbalance valves	FBRC	FBRC
Hydraulic cylinders	Complete set of hydraulic cylinders

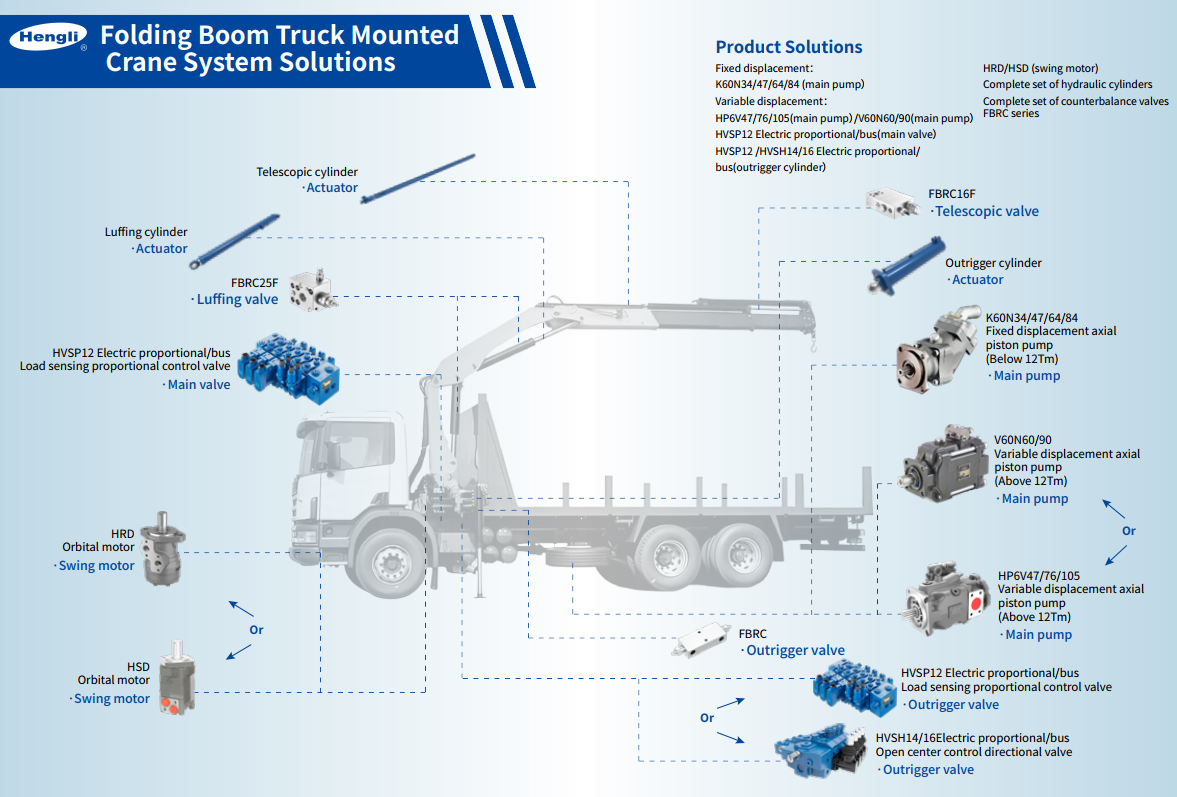

Functional	Product Model	Docs
Fixed displacement(main pump）	K60N34/47/64/84
Variable displacement(main pump）	HP6V47/76/105 ，V60N60/90	HP6V , V60N
Electric proportional/bus(main valve）	HVSP12	HVSP
Electric proportional/ bus(outrigger cylinder）	HVSP12	HVSP
Electric proportional/ bus(outrigger cylinder）	HVSH14/16	HVSH
Swing motor	HRD , HSD	HRD , HSD
Counterbalance valves	FBRC	FBRC
Hydraulic cylinders	Complete set of hydraulic cylinders

Product Advantage

-Plunger pump:

The use of HP6V medium pressure pump for small tonnage can effectively improve operational efficiency through host matching. At the same time, spherical flow distribution technology is adopted, suitable for high-pressure and high-speed working conditions;

Medium to large tonnage can choose V90N The heavy-duty design of DT and V32G high-pressure pumps can effectively ensure the requirements of cranes for safe and reliable lifting applications;

-Plunger motor:

Optimized rotational balance design, high-speed performance, and smooth starting characteristics;

-Hydraulic cylinder:

Customization can be made according to customer requirements to meet the requirements of ordinary and special working conditions.
